Optical Speed Measurement Photoelectric Sensor

  • Optical Speed Measurement Photoelectric Sensor
  • Optical Speed Measurement Photoelectric Sensor
  • Optical Speed Measurement Photoelectric Sensor
  • Optical Speed Measurement Photoelectric Sensor

Optical Speed Measurement Photoelectric Sensor

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CFR,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 7 Days
    Packaging: Carton
    Brand: LANDER
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 500 sets per week
    Certificate: ISO9001
    HS Code: 85437099

Basic Info

Model No.: 50S

Product Description


Products Description



Optical Speed Measurement Photoelectric sensor


The 50S series Incremental Rotary Encoder adopts a 50mm size shell, which can accurately measure angle, position, speed, speed, acceleration and length. Encoders can be divided into wiring lead type, wiring lead plug type and various control output options.


Accurately measure angle, position, speed, speed, acceleration and length Wiring lead type, wiring lead plug type

50mm shell, 8mm solid shaft

Resolution up to 5000 pulses



WHY CHOOSE LANDER?
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard


123


Features:

* Good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.



Model Selection Guide


50S

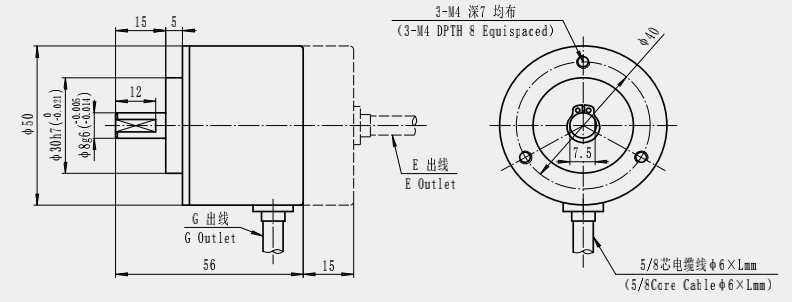

Manufacturing Dimensions
50s


Product Paramenters

ITEM
PARAMTERS
Brand
LANDER
Encoder type
Incremental encoder
External diameter
50mm
Thickness
56mm
Shaft length

Solid Shaft diameter
6mm/8mm/10mm
Resolution
50;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;3000;3600;4096;5000;
Output mode
NPN&PNP
Voltage output
Push-pull output
Line driver (TTL,HTL,RS422)
Output phase
Phase A,B,Z,A-,B-,Z-
Outlet type
Cable out from side
Protection grade
IP50 & IP65
Cable length
1m
package
Carton box
Net weight
About 120g (with package)
Certification
CE/ ISO9001
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
starting torque
less than 4.4X10-3 N.m
Intertia moment
less than 1.5x 10-6kg.m2
Shaft load
Radial 40N; Axial 20N
Top REV
5000RPM ;IP65≤3000r rpm
Environmental temperature
Operating:-20 ~+85℃;storage:-25 ~+90℃
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
49m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
