Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price

  • Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price
  • Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price
  • Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price
  • Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price

Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CFR,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 7 Days
    Packaging: Carton
    Brand: LANDER
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 500 sets per week
    Certificate: ISO9001
    HS Code: 85437099

Basic Info

Model No.: 58B

Product Description



Products Description


Incremental Rotary Encoder 10mm Shaft 1000 Pulse Price


58 series incremental Rotary Encoder adopts 58mm size European standard flange design, which can accurately measure angle, position, rotation speed, speed, acceleration And length. Encoders can be divided into shaft type, hollow shaft type and embedded type; wiring methods can be divided into wiring lead type, wiring lead plug type; and various control output options.


58mm flange incremental rotary encoder

Accurately measure angle, position, speed, speed, acceleration and length

Power supply voltage: 5VDC, 8-26VDC, 10-30DC



WHY CHOOSE LANDER?
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

Incremental EncoderIncremental Rotary EncoderOptical EncoderOptical Rotary Encoder


Features:

* Good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.



Model Selection Guide


58B

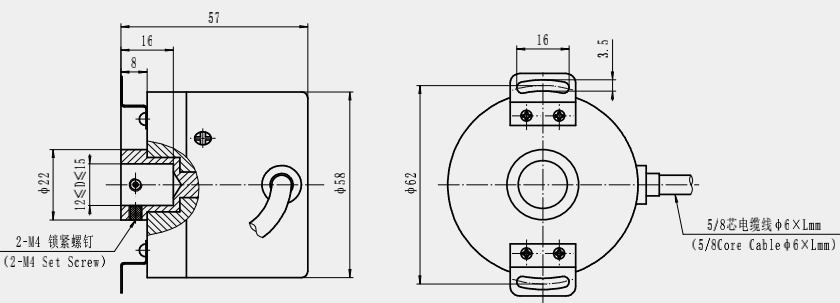

Manufacturing Dimensions
58b


Product Paramenters

ITEM
PARAMTERS
Brand
LANDER
Encoder type
Incremental encoder
External diameter
58mm
Thickness
47mm
Shaft length

Solid Shaft diameter
6mm/8mm/10mm/12mm/14mm/15mm
Resolution
50;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;3000;3600;4096;5000;
Output mode
NPN&PNP
Voltage output
Push-pull output
Line driver (TTL,HTL,RS422)
Output phase
Phase A,B,Z,A-,B-,Z-
Outlet type
Cable out from side
Protection grade
IP50 & IP65
Cable length
1m
package
Carton box
Net weight
About 120g (with package)
Certification
CE/ ISO9001
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
starting torque
less than 4.4X10-3 N.m
Intertia moment
less than 1.5x 10-6kg.m2
Shaft load
Radial 40N; Axial 20N
Top REV
5000RPM ;IP65≤3000r rpm
Environmental temperature
Operating:-20 ~+85℃;storage:-25 ~+90℃
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
49m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
